Description

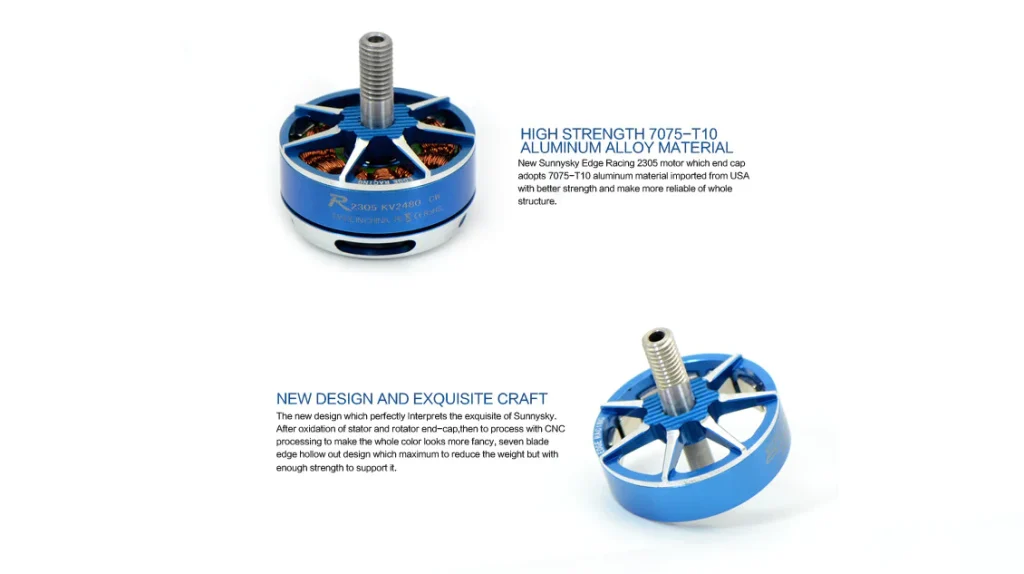

The new design which perfectly interprets the exquisite of Sunnysky. After oxidation of stator and rotator end-cap, then to process with CNC processing to make the whole color looks more fancy, seven blade edge hollow out design which maximum to reduce the weight but with enough strength to support it.
KV2300
| Stator Diameter | 23mm | Max Continuous Power | 1000W |
|---|---|---|---|
| Stator Thickness | 5mm | Weight | 29g |
| No.of Stator Slots | 12 | Rotor Diameter | 29mm |
| No.of Rotor Poles | 14 | Body Length | 29.95mm |
| Motor Kv | 2300 | Max Lipo Cell | 3-5S |
| No-load current | 1.2A/10V | ESC | 30-50A |
| Motor Resistance | 38mΩ | Recommended Prop(inch) | 5x4x2/5x4x3/5×4.5×3/5×4.5×2 |
| Max Continuous Current | 50A/10s |
KV2480
| Stator Diameter | 23mm | Max Continuous Power | 825W |
|---|---|---|---|
| Stator Thickness | 5mm | Weight | 29g |
| No.of Stator Slots | 12 | Rotor Diameter | 29mm |
| No.of Rotor Poles | 14 | Body Length | 29.95mm |
| Motor Kv | 2480 | Max Lipo Cell | 3-4S |
| No-load current | 1.5A/10V | ESC | 30-50A |
| Motor Resistance | 35mΩ | Recommended Prop(inch) | 5x4x2/5x4x3/5×4.5×3/5×4.5×2 |
| Max Continuous Current | 50A/10s |
KV2800
| Stator Diameter | 23mm | Max Continuous Power | 900W |
|---|---|---|---|
| Stator Thickness | 5mm | Weight | 29g |
| No.of Stator Slots | 12 | Rotor Diameter | 29mm |
| No.of Rotor Poles | 14 | Body Length | 29.95mm |
| Motor Kv | 2800 | Max Lipo Cell | 3-4S |
| No-load current | 1.8A/10V | ESC | 30-50A |
| Motor Resistance | 27mΩ | Recommended Prop(inch) | 5x4x2/5x4x3/5×4.5×3/5×4.5×2 |
| Max Continuous Current | 55A/10s |
KV2300 PROP DATA CLICK HERE
